IP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110E

    Buy cheap IP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110E from wholesalers

    Buy cheap IP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110E from wholesalers
    • Buy cheap IP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110E from wholesalers
    • Buy cheap IP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110E from wholesalers

    IP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110E

    Ask Lasest Price
    Brand Name : SOROTEC
    Certification : CE,ROHS,ISO9000
    Delivery Time : Within 15-30days after receiving your 30% TT deposit
    Payment Terms : 30% TT in advance, the balance before shipping
    Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
    Model Number : HW9110E 1-10KVA
    • Product Details
    • Company Profile

    IP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110E

    IP55 Double Conversion Outdoor UPS Air Conditioner HW9110E 1-10KVA


    Key Features:

    1. Providing with pure sinewave power for outdoor telecom and network equipment.


    2. Be suitable for outdoor severe Temperature,Humidity and harsh Environment, especially can meet the outdoor electric network requirements. (Outdoor environment is severe and quality of electric network also is so bad . For example outdoor high temperature is 50 and severe winter is 40,Voltage range is from 160V to 260V even easily change )


    3. Adopting sealed natural cold design, high-temperature resistant ,cold resistant and corrosion resistant,that degree of sealing is IP55


    Application:

    1. Providing with outdoor complete integrated communication cabinet.


    2. According to customers requirement to produce,.achieving integrated solution products.


    3. Making the best of vacant areas resources without equipment room , reducing the period of setting up communication network. and cutting down project costs.


    Technical Specifications of Outdoor UPS HW9110E Series:

    Model

    HW9110E 1-10KVA

    1KVA

    2KVA

    3KVA

    6KVA

    10KVA

    Capacity

    1KVA/800W

    2KVA/1600W

    3KVA/2400W

    6KVA/4800W

    1000KVA/8000W

    Nominal voltage

    220/230/240VAC

    Nominal frequency

    50/60HZ

    Input

    Voltage Range

    115~295VAC(±3VAC)

    176~297VAC(±3VAC)

    Frequency Range

    50HZ(46~54HZ),60H(56HZ~64HZ)

    Power Factor

    0.98

    Output

    Voltage Precision

    220/230/240X (1±2%)VAC

    Frequency Precision

    50/60HZ±0.05Hz

    Power Factor

    0.7/0.8(optional)

    Wave Distortion

    Linear load <3% Non-linear load <6%

    Overload capability

    Overload (110% ~ 150%) for 30 seconds,then automatically transfer to bypass.When load is normal,it can automatically transfer to normal mode.

    Crest factor

    3;1

    Transfer Time

    0ms(AC to DC )

    Battery

    DC supply voltage

    36VDC

    96VDC

    96VDC

    240VDC

    240VDC

    Charge current

    4A/8A(optional)

    4A/8A(optional)

    4A/8A(optional)

    4.2A

    4.2A

    Internal battery capacity

    (38/65/80/100AH)optional

    Panel display

    LCD

    Display input and output voltage, frequency, battery voltage, battery capacity, load percentage

    Communications

    communicate interface

    RS232,SNMP card(optional)

    Work environment

    Temperature

    0~40°C

    Humidity

    0~95% Non-condensing

    Storage temperature

    -25°C~55°C

    Elevation

    <1500m

    Acoustic Noise ( within 1 meter)

    <50dB

    Physical Characteristics

    Weight(KG)


    85

    125

    125

    150

    155

    Dimensions ( Wx D x H )mm

    640×900×900

    640×900×1185

    640 ×900×1185

    940×940×1770

    940×940×1770

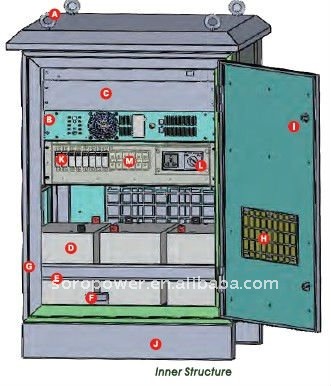

    Inner Structure of outdoor UPS HW9110E 1-10KVA:

    IP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110EIP55 Double Conversion Outdoor UPS Air Conditioner 1-10KVA HW9110E

    Our Service


    1. Samples

    Samples are Available for Testing and Market Test.


    2. Warranty of Soropower Products

    Soropower provides warranty against defects in materials and workmanship for its Uninterruptible power supply,Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“Product”).


    3. Guides and After-service Consultancy

    Soropower Team will offer these guides below.


    A. Need an Accessory?


    B. Products Repair?


    C. Power Problems to Solve?


    D. Power Protection Solutions, etc.?


    24 Hours After service consultancy just for you and to make your problems to solve easily
