    230V 50/60Hz Off Grid Solar Power Systems Pure Sine Wave Output SPS3118C 4KVA / 5KVA

    Ask Lasest Price
    Brand Name : SOROTEC
    Model Number : SPS3118C
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 3000PCS Per Month
    Delivery Time : Within 15-30days after receiving your 30% TT deposit
    • Product Details
    • Company Profile

    230V 50/60Hz Off Grid Solar Power Systems Pure Sine Wave Output SPS3118C 4KVA / 5KVA


    230V 50/60Hz Off Grid Solar Power Systems Pure Sine Wave Output SPS3118C 4KVA / 5KVA


    Key Features:

    1.Built In Battery.

    2.Pure sine wave inverter.

    3.Selectable charging current based on applications.

    4.Configurable AC/Solar input priority via LCD setting.

    5.Compatible t mains voltage or generator power.

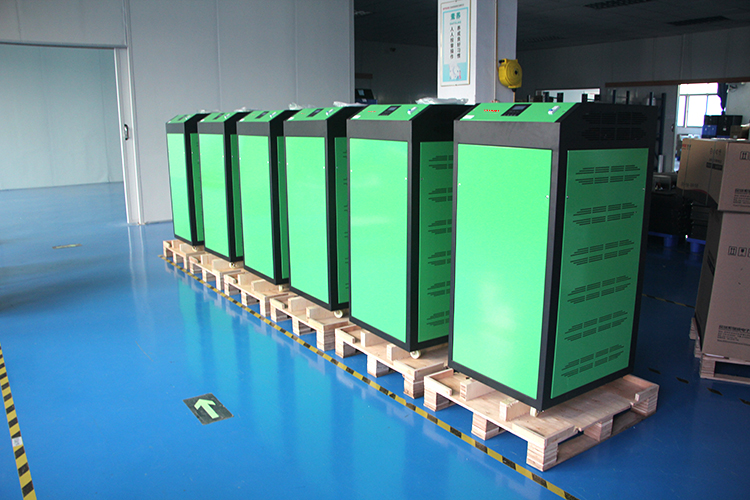

    Product Show:



    Product Descriptions:

    MODELC2 1K-2425C2 2K-2425C2 3K-2425C2 4K-4860C2 5K-4860
    Rated Power1KVA/800W2KVA/1600W3KVA/2400W4KVA/3200W5KVA/4000W
    INPUT
    Voltage230VAC
    Selectable Voltage Range170-280VAC(For Personal Computers)
    90-280VAC(For Home Appliances)
    Frequency Range50Hz/60Hz(Auto sensing)
    OUTPUT
    AC Voltage Regulation(Batt.Mode)230VAC ±5%
    Surge Power2000VA4000VA6000VA8000VA10000VA
    Efficiency(Peak)90%93%
    Transfer Time10ms (For Personal Computers)
    20ms (For Home Appliances)
    WaveformPure sine wave
    BATTERY
    Battery Voltage24VDC48VDC
    Floating Charge Voltage27VDC54VDC
    Overcharge Protection31VDC60VDC
    SOLAR CHARGER & AC CHARGER
    Maximum PV Array Power600W600W3000W4000W
    MPPT Range @ Operating Voltage30~66VDC30~66VDC66~115VDC
    Maximum PV Array Open Circuit Voltage75VDC75VDC145VDC
    Maximum Solar Charge Current25A25A60A60A
    Maximum AC Charge Current20A30A30A60A
    Maximum Charge Current25A30A30A120A120A
    AC charger and solar charger can't work at the same time
    Maximum Efficiency98%
    Standby Power Consumption2W
    OPERATING ENVIRONMENT
    Humidity5% to 95% Relative Humidity(Non-condensing)
    Operating Temperature0°C-55°C
    Storage Temperature-15°C-60°C
