    10KVA 9KW High Frequency Online Uninterrupted Power Supply , desktop 3 Phase UPS

    Ask Lasest Price
    Brand Name : SOROTEC
    Model Number : HP9335C Plus 10-30kVA Online UPS
    Certification : CE,ROHS,ISO9000
    Price : 1000USD
    Payment Terms : L/C, , T/T, Western Union
    Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
    Delivery Time : Within 15-30days after receiving your 30% TT deposit
    • Product Details
    • Company Profile

    10KVA 9KW High Frequency Online Uninterrupted Power Supply , desktop 3 Phase UPS


    10KVA 9KW High Frequency Online Uninterrupted Power Supply , desktop 3 Phase UPS

    Product Descriptions:
    1. High Frequency Online UPS Power System
    2. Reliable and Uninterrupted Power Supply
    3. Output Power Factor 0.93Ph in and 3Ph out
    4. SNMP+USB+RS232 Multiple Communications
    5. Optional N+X Parallel Redundancy
    6. Wide Input Voltage Range (110~300VAC)
    7. Optional Transformer Offers Full Isolation

    Key Features:
    1) True double-conversion online ups
    2) Generator Input Available
    3) Accepts dual-mains inputs
    4) Adjustable battery numbers
    5) Maintenance bypass available
    6) 50Hz/60Hz frequency converter mode
    7) ECO mode operation for energy saving
    8) Emergency power off function (EPO)
    9) Active power factor correction in all phases
    10) DSP technology guarantees high performance
    11)3-stage extendable charging design for optimized battery performance


    Mainly Applications:
    Hp9335C Plus series 3Ph in/3Ph out high frequency online ups capacity from 10kva to 30kva ,special for provide reliable uninterrupted,long time backup power supply for personal computers,medical,telecom, local area networks,labs,servers,e-business and so on precision equipments.

    Technical Parameters

    MODELHP9335C Plus 10-30KVA
    10K10K-XL15K15K-XL20K20K-XL30K30K-XL
    CAPACITY10KVA / 9KW15KVA / 13.5KW20KVA / 18KW30KVA / 27KW
    PHASE3 Phase with Neutral
    INPUT
    Voltage RangeLow Line Loss110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load
    Low Line ComebackLow Line Loss Voltage + 10V
    High Line Loss300 VAC(Ph-N) ± 3 %
    High Line ComebackHigh Line Loss Voltage - 10V
    PhaseThree phase with ground
    Power Factor≥ 0.99 at 100% Load
    OUTPUT
    Output voltage208/220/230/240VAC(Ph-N)
    AC Voltage Regulation± 1%
    Frequency Range (Synchronized Range)46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system
    Frequency Range (Batt. Mode)50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
    OverloadAC mode100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec
    Battery mode100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec
    Current Crest Ratio3:1 max
    Harmonic Distortion≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
    Transfer TimeLine←→Battery0 ms
    Inverte←→Bypass0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
    Line←→ECO<10 ms
    EFFICIENCY
    AC mode> 89%> 89%> 89%> 90%
    Battery Mode> 86%> 88%> 87%> 89%
    BATTERY
    Standard ModelType
    12 V / 9 Ah12 V / 9 Ah12 V / 9 Ah12 V / 9 Ah
    Numbers20(18-20 adjustable)2 x 20(18-20 adjustable)2 x 20(18-20 adjustable)3 x 20(18-20 adjustable)
    Recharge Time9 hours recover to 90% capacity
    Charging Current1.0 A ± 10% (max.)2.0 A ± 10% (max.)2.0 A ± 10% (max.)4.0 A ± 10% (max.)
    Charging Voltage273 VDC ± 1%
    Long-run ModelTypeDepending on applications
    Numbers18-20
    Charging Current4.0 A ± 10% (max.)4.0 A ± 10% (max.)4.0 A ± 10% (max.)12.0 A ± 10% (max.)
    Charging Voltage273 VDC ± 1%
    PHYSICAL
    Standard ModelDimension,DxWxH(mm)832 X250X894832 X250X1275
    Long-run ModelDimension,DxWxH(mm)609 X250X768832 X250X828
    ENVIRONMENT
    Operation Temperature0 ~ 40°C (the battery life will down when > 25°C)
    Operation Humidity<95 % and non-condensing
    Operation Altitude<1000m
    Acoustic Noise LevelLess than 58dB @ 1 MeterLess than 60dB @ 1 Meter
    MANAGEMENT
    Smart RS-232 / USBSupports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
    USBPower management from SNMP manager and web browser

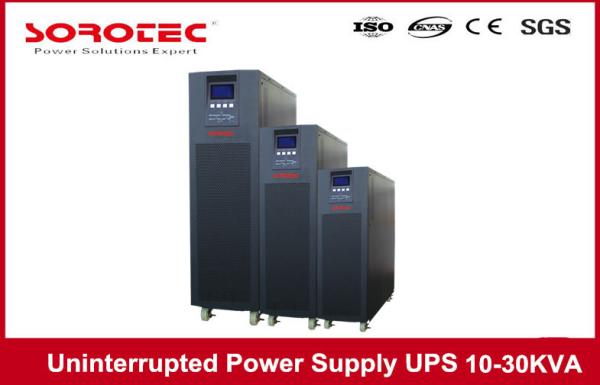

    Product Show:
