380VAC 30KVA High Frequency Online ups industrial , uniterruptible
power supply Three Phase

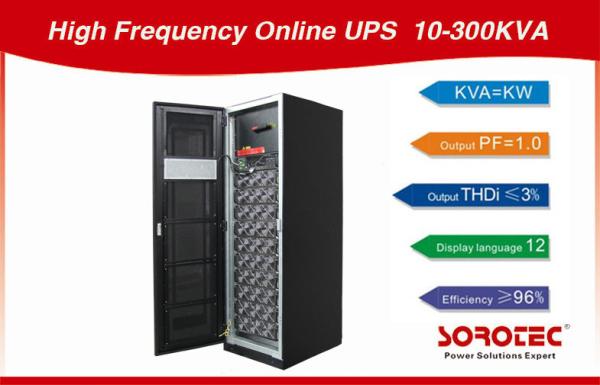

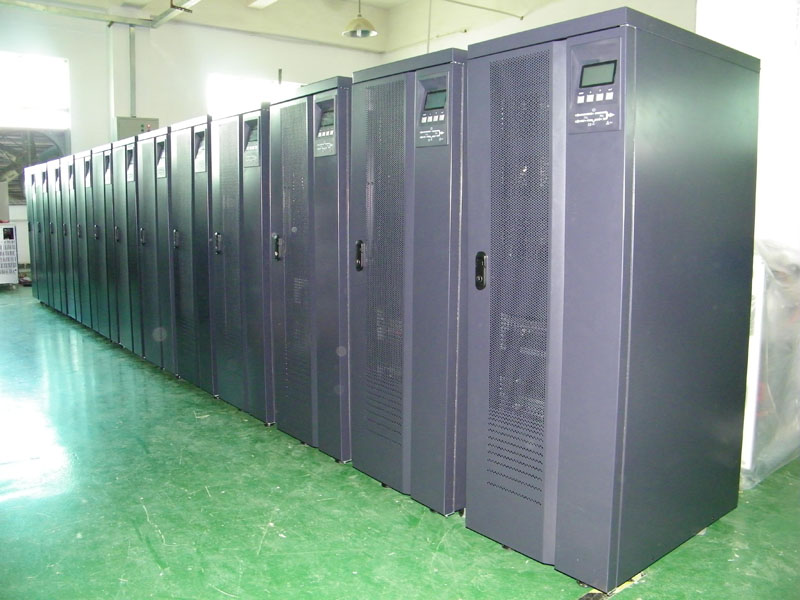

MPS9335C Series High Frequency Online UPS 10-300KVA (3Ph in/3Ph
out)
Stable Online Double Conversion UPS System
Large Power Loads for Precision Equipments
Hot-Swappable Power Modular and STS Modular Structure
Support Online Capacity Expansion and Maintenance
Advanced Parallel Technology can Parallel Working for 4PCS UPS
Multi-Communications Ports: RS232,RS485,Dry contact,SNMP card for
your choice
Key Features:
1.Superior energy saving and environment-friendly:
Efficiency > 96% at 50%-75% rated load, and > 95% at 25%
rated load; Input PF > 0.99,input THDi<3%
2.Superior capability of powering load:
Output PF is 0.9, no need of power deration with load of leading or
lagging PF
3.Easy-to-install:
Top or bottom cabling, no need of input cabling cabinet.
4.Easy-to-maintain:
Full front access, UPS, failed part can be replaced shortly
5.Advanced DSP full control technology:
Realize higher system stability ,online capacity expansion and
maintenance
6.Advanced Distributed Active Parallel technology:
Realizes parallel operation of 4UPS units and online capacity
expansion
7.Support Extra Wide Input Voltage and Frequency Range:
Perfectly adaptive to all kinds of severe power grid environments
8.Intelligent Battery Management Maintains Battery:
Automatically to prolong the life of battery
9.Each UPS modules provide 4.5kw charge capacity,equivalent to 10
-12Amp
10.The machine system for modular structure :
Consists of 1~10 Modules for biggest single module is 30KW
11.UPS power modular supporting hot swappable, capacity upgrade
extramely simple
12. Provide large LCD Touch Screen(Optional):
6-inch extra large LCD that can display 12 language (
Chinese,English , Russian , Spanish , French and so on )
13.Super ability for overload and short circuit,ensure the system
stability and safety under the limit state of system.
14.Easy-to-modify:
The number of battery cells can be configured flexibly, so the
original batteries can be used when modifying the legacy
system; moreover, the battery cell can be replaced in time when it fails
without interrupting the normal operation of UPS.
Application:
ApplicationIDC(Internet Data Center), computing center, ISP
(Internet Service Provider ),Telecom,Finance bank and securities,
Tax, hospital system, industrial automation, precision equipment,
etc.
Technical Specifications of Modular UPS, MPS9335 10-300KVA:
| Model | MPS9335 10-300KVA |
| Capacity | 10-300KVA |
| Main input | |
| Input voltage | 380V/400V/415AC(Optional South America 208v) |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0. 98 |
| THDi | THDi <3% |
| Input power soft-start fantion | 5-30s settable |
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can
take 70% load at -40% |
| Frequency Range | 40-70Hz |
| Battery | |
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose |
| Charge Voltage accuracy | ± 1% |
| Bypass | |
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges
can be set via software |
| Overload Capacity | 150%,long term operation,150%<load<180%,more than 1 hour
,load>1000% 100ms |
| Output | |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) |
| THDi | THD<1%(linear load), THD<3%(nonlinear load) |
| Power Factor | 0.9 |
| Three Phase Angle accuracy | 120°c ± 0.5°c |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 0ms,15ms(ECO Mode) |
| System | |
| Frequency | 50Hz/60Hz (Settable) |
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of
+/- 0.5Hz - 3Hz |
| Protection Level | IP20 |
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port |
| System efficiency | > 96% at load above 50%, >95% at load above 25% |
| Operation Temperature | 0-40 °c |
| Storage Temperature | -25 °c -70 °c (without battery) |
| Humidity | 0-95%(no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG |
| 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG |
| module :PM10 | 10KVA power module :20KG |
| Weight | module :PM20 | 20KVA power module :21KG |
| module :PM30 | 30KVA power module :32KG |
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 |
| 10 module cabinet | 600X2070X850 |
| power module | 440X132X660(10KVA/20KVA/30KVA) |
