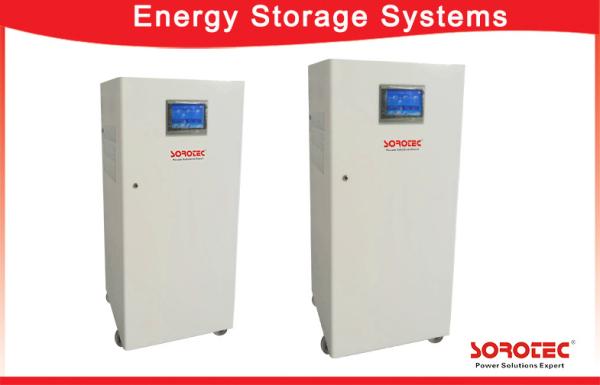

    White Color 220V 3KW Home Energy Storage Systems , Off Grid Solar Power Systems

    Ask Lasest Price
    Brand Name : SOROTEC
    Model Number : Energy Storage System
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 1000PCS/Month for Energy Storage System
    Delivery Time : Within 15-30days after receiving your 30% TT deposit
    • Product Details
    • Company Profile

    White Color 220V 3KW Home Energy Storage Systems , Off Grid Solar Power Systems


    White Color 220V 3KW Home Energy Storage Systems , Off Grid Solar Power Systems


    All in one energy storage system built-in 80A MPPT solar charge controller, it has parallel operation function for energy storage, and commonly used in solar power station, solar power system for household, suitable for bad environment. The wide PV input range can reach at the range of 120-450VDC.


    Key Features:


    ♦ External wi-fi device optional.


    ♦ Parallel operation with up to 6 units only available for 3KW/4KW/5KW.


    ♦ Structure with dust filter.


    ♦ Output power factor PF=1.0.


    ♦ Energy generated record, load record, history information and fault record.




    Product Description of Energy Storage System

    MODELEnergy Storage Systems
    3KW4KW5KW
    Max PV Array Power4500W
    Rated Output Power3000W4000W5000W
    Maximum PV Array Open Circuit Voltage500VDC
    MPPT Range @ Operating Voltage120-450VDC
    MPPT Tracker Number1
    GRID-TIE OPERATION
    GRID OUTPUT (AC)
    Nominal Output Voltage220/230/240VAC
    Output Voltage Range184-264.5VAC
    Nominal Output Current13A17.4A21.7A
    Power Factor>0.99
    EFFICIENCY
    Maximum Conversion Efficiency (DC/AC)96%
    OFF-GRID, HYBRID OPERATION
    GRID INPUT
    Acceptable Input Voltage Range90-280VAC or 170-280 VAC
    Frequency Range50Hz/60Hz (Auto sensing)
    Maximum AC Input Current40A
    BATTERY MODE OUTPUT (AC)
    Nominal Output Voltage220/230/240VAC
    Output Wave FormPure sine wave
    Efficiency (DC to AC)93%
    BATTERY & CHARGER
    Nominal DC Voltage48VDC
    Maximum Solar Charge Current80A
    Maximum AC Charge Current60A
    Maximum Charge Current80A
    GENERAL
    INTERFACE
    Parallel FunctionYes
    CommunicationUSB or RS232/Dry-Contact
    ENVIRONMENT
    Humidity0~90% RH (No Condensing)
    Operating Temperature0 to 50 °C

    PACKAGING
