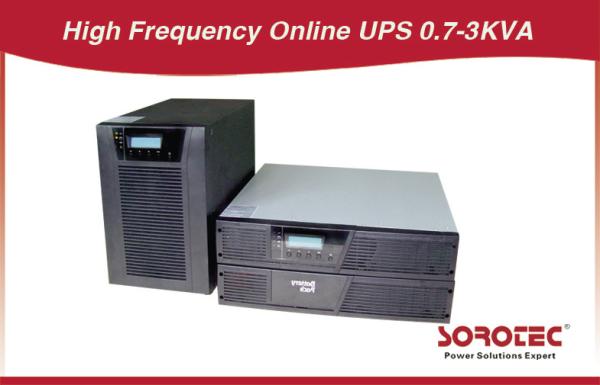

Online 0.9 power factor Rack Mount Power Supply Series 1KVA / 900W, 2KVA / 1800W 230V 110V

    Buy cheap Online 0.9 power factor Rack Mount Power Supply Series 1KVA / 900W, 2KVA / 1800W 230V 110V from wholesalers

    Buy cheap Online 0.9 power factor Rack Mount Power Supply Series 1KVA / 900W, 2KVA / 1800W 230V 110V from wholesalers
    • Buy cheap Online 0.9 power factor Rack Mount Power Supply Series 1KVA / 900W, 2KVA / 1800W 230V 110V from wholesalers

    Online 0.9 power factor Rack Mount Power Supply Series 1KVA / 900W, 2KVA / 1800W 230V 110V

    Ask Lasest Price
    Brand Name : SOROTEC
    Certification : CE,ROHS,ISO9000
    Delivery Time : Within 15-30days after receiving your 30% TT deposit
    Payment Terms : 30% TT in advance, the balance before shipping
    Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
    Model Number : HP9117C 1 - 3KT
    • Product Details
    • Company Profile

    Online 0.9 power factor Rack Mount Power Supply Series 1KVA / 900W, 2KVA / 1800W 230V 110V


    Online 0.9 power factor Rack Mount Power Supply Series 1KVA / 900W, 2KVA / 1800W 230V 110V


    Key Features:
    Offers premium performance with a 0.9 power factor and >95% efficiency
    Increases battery service life and system uptime with ABM battery charging technology

    Protects against downtime, data loss and process interruption by providing continuous, clean powerEnables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical systems or processes thanks to a capability to control load segments.Provides installation flexibility with a choice of rack or tower designs, both conserving valuable space Can replace batteries online, convenient for user to use
    Enhanced monitoring and configuration capability through easily navigated multilingual graphical display.

    Application:
    IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems, Chip fabrication, Pharmaceutical production, Chemical processing


    Note: Product specifications are subject to change without further notice


    Technical Specifications of Online UPS HP9117C 0.7-3KVA

    Model

    HP9117 1-3KVA

    1KT/1KR

    1KT-XL/1KR-XL

    2KT/
    2KR

    2KT-XL/
    2KR-XL

    3KT/
    3KR

    3KT-XL/
    3KR-XL

    Capacity

    1KVA/900 W

    2KVA/1800 W

    3KVA/
    2700 W

    Nominal Voltage

    100/110/120/127VAC or 200
    /208/220/230/240VAC

    Nominal Frequency

    50/60 Hz

    Input

    Voltage Range

    60-138VAC or 115-276VAC

    Frequency Range

    50HZ:(46~54HZ);
    60HZ:(56HZ~64HZ)

    Power Factor

    >0.98

    Output

    Voltage precision

    100/110/120/127VAC(±2%)
    or 200/208/220/230/
    240VAC (±2%)

    Frequency precision

    50Hz/60Hz±0.05Hz

    Power Factor

    0.9

    Harmonic Distortion

    Linear Load<3%
    Non-Linear Load<5%

    Overload capacity

    overload(110%~150%)
    after 30 seconds
    automatically transfer
    to bypass, it recover
    after normal load

    Current Crest Ratio

    3∶1

    Transfer time

    0ms(AC→DC)

    Battery

    DC voltage

    36VDC

    96VDC

    96VDC

    Recharge time

    7 hours to 90%

    Charge Current

    1A

    4A/8A(option)

    1A

    4A/8A(option)

    1A

    4A/8A(option)

    Panel Display

    LCD

    UPS status, input/output
    voltage frequency, battery
    voltage, capacity, load,
    temperature, history records

    Language

    English, French, German,
    Russian, Spanish

    Communicate

    Communicate
    interface

    Optional: SNMP card,
    AS400 card or the
    CMC provide software,
    EPO (USB port)

    Working Environment

    Temperature

    0~40℃

    Relative humidity

    0~95% non-condensing

    Storage Temperature

    -25℃~55℃

    Elevation

    <1500 meter

    Noise Level( 1meter)

    <45dB

    <45dB

    <50dB

    Physics
    Characteristic

    Net weigh(Kg)

    15

    16

    8.5

    9

    33

    10.5

    16.5

    11.5

    34

    11.5

    17

    12.5

    Gross weight (Kg)

    17.5

    17.5

    11

    11.5

    35

    12.5

    18.5

    13.5

    36

    13.5

    19

    14.5

    Dimension (WXDXH)

    Main unit(Tower)

    200X400X145

    340X460X192

    340X460X192

    Main unit
    (Rack mount)

    438X415X80

    455 X440 X90
