Hot Pluggable 48VDC Outdoor Installation Telecom Solar Power System SHW48100

    Buy cheap Hot Pluggable 48VDC Outdoor Installation Telecom Solar Power System SHW48100 from wholesalers

    Buy cheap Hot Pluggable 48VDC Outdoor Installation Telecom Solar Power System SHW48100 from wholesalers
    • Buy cheap Hot Pluggable 48VDC Outdoor Installation Telecom Solar Power System SHW48100 from wholesalers

    Hot Pluggable 48VDC Outdoor Installation Telecom Solar Power System SHW48100

    Ask Lasest Price
    Brand Name : SOROTEC
    Model Number : SHW48100
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 3000PCS Per Month
    Delivery Time : Within 15-30days after receiving your 30% TT deposit
    • Product Details
    • Company Profile

    Hot Pluggable 48VDC Outdoor Installation Telecom Solar Power System SHW48100

    Hot Pluggable 48VDC Outdoor Installation Telecom Solar Power System SHW48100


    Key Features:

    1.Various Human-computer Interface.

    2.Protection Degree: IP55.

    3.Hot-swappable Easy to Maintance.

    4.Smart Monitor Control System.

    5.Suitable for outdoor installation.


    Application:

    Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC system. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.

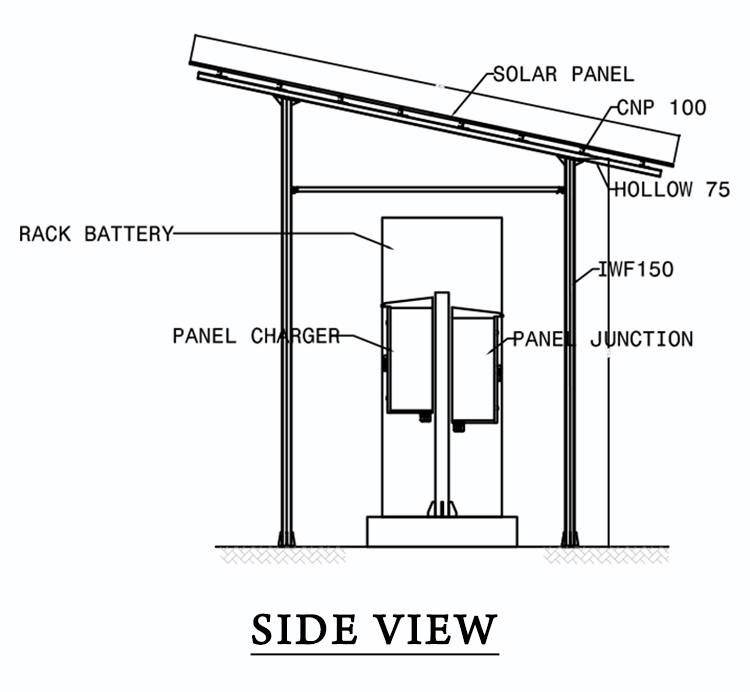

    Product Show:


    48-12


    48-13


    Product Descriptions:

    SHW48100 Solar SystemRectifier Module(1-2) MPPT Solar Charge Controller(1-2)
    INPUT
    MPPT Range @Operating Voltage60 ~115VDC
    Maximum PV Array Open Circuit Voltage145VDC
    Maximum PV Array Power3000W
    Maximum Input Current50A
    OUTPUT
    Nominal Battery Voltage42-58VDC
    Maximum Charge Current50A
    Maximum Efficiency98%
    Charging MethodThree stages: bulk, absorption and floating
    PROTECTION
    Overload Protection> 110% : audible alarm
    Overcharge ProtectionYes
    Polarity Reversal Protection @Solar Cell & BatteryYes
    INDICATORS
    LCD PanelLCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
    LED DisplayThree indicators for solar, charging, and load status
    Rectifier Module
    Rated input voltage220V
    AC input Voltage range90-290V
    AC input Frequency range45-65HZ
    Power factor≥0.99
    Efficiency>92%
    Rated output voltage48V
    Rated output current0-50A
    Voltage range42-58V
    ENVIRONMENT
    Humidity0 ~ 100% RH (No condensing)
    Operating Temperature-20°C to 55°C
    Storage Temperature-40°C to 75°C
    Altitude0 ~ 3000 m
